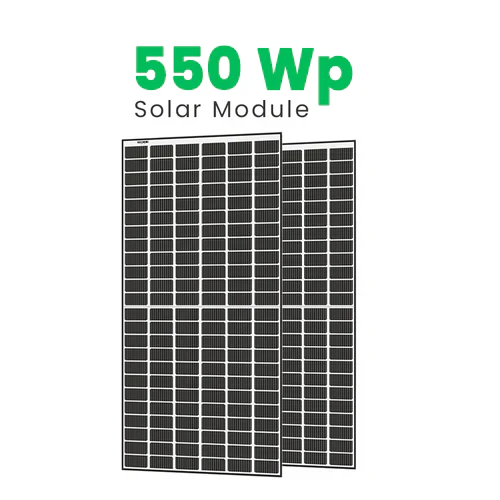

SHARK 550 Wp solar panel features advanced technology with 144 Mono PERC Half-Cut Solar cells. The performance of this panel is highly efficient in cloudy and foggy weather. Read more
SHARK 550 Wp solar panel features advanced technology with 144 Mono PERC Half-Cut Solar cells. The performance of this panel is highly efficient in cloudy and foggy weather. This panel is also available in a bi-facial version which can absorb sunlight energy from both sides, enhancing energy generation by producing 30%–50% more power compared to traditional mono-facial panels, even in spaces with limited occupancy. It consists of MC4 IP68-rated compatibility, providing superior waterproofing and dust protection for long-term reliability. Its Half-Cut design reduces the impact of shadows on the panel. This solar panel is compatible with both standalone and on-grid systems.
Module Type | SHARK 550 |
Power (Pm) in watts | 550 |
No. of Cells | 144 |
No. of Bus Bars | 10 |
Voltage at maximum power (Vmp) in volts | 42.74 |
Current at maximum power (Imp) in Amps | 12.89 |
Open Circuit Voltage (Voc) in volts | 49.60 |
Short Circuit Current (Isc) in Amps | 13.72 |
Maximum system Voltage (VDC) | 1500 |
Module Efficiency (%) | 21.35% |
Junction Box | IP68 Rated With Diode |
Glass | High Transmission Low Iron Tempered Solar Glass |
Cells Encapsulate | Ethylene Vinyl Acetate (EVA) - FC/UFC |
Back Sheet | Composite Film - White |
Frame | Black / Silver Anodized Aluminium Frame with Twin Wall Profile |
Mechanical Load Test | Sustain Heavy Wind & Snow Loads (2400 Pa & 5400 Pa or 550 Kg /m2) |
Max Series Fuse Test | 30 A |
Module Weight (Kg) | 29 kg |
Technology | Mono PERC |
Annual Electricity Generation (kWh) | 1160 |
Download datasheet from here.
Specifications | Descriptions |
---|---|
No Specifications |
