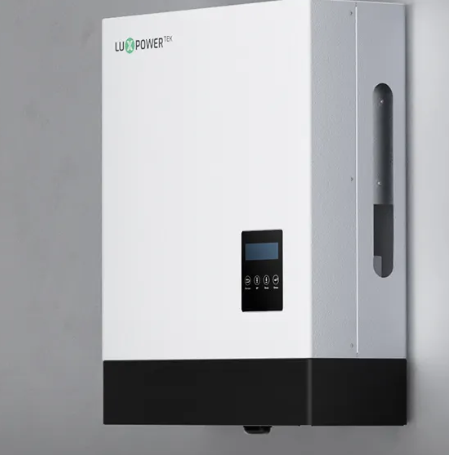

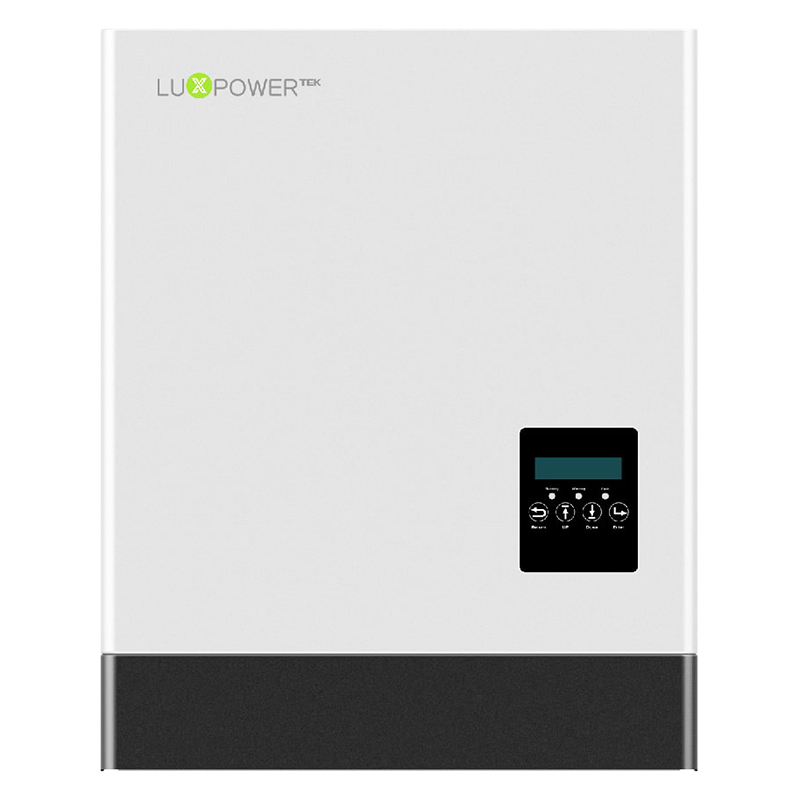

Hybrid Inverter LXP3-6K

In Stock (10 items)
₹100,000.00 ₹20,000.00

Intelligent working modes Stronger EPS Easy to use with battery IP65, indoor & outdoor use Advanced Parallel, up to 60kW Plug & Play, seamless switching under 10ms Read more

Brand: Lux Power
Categories: Solar Inverter / HYBRID
Tags: Hybrid Inverter, Inverter
SKU: #9cHripd9GW
Wishlist Added To Wishlist
Share:

Specification

SolarLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
Max. DC Input Power6600W7000W8000W8000W
Nominal DC Input Voltage360V.d.c360V.d.c360V.d.c360V.d.c
DC Input Voltage Range100 – 550V.d.c100 – 550V.d.c100 – 550V.d.c100 – 550V.d.c
MPPT Voltage Range100 – 500V.d.c100 – 500V.d.c100 – 500V.d.c100 – 500V.d.c
Start-up Voltage120V.d.c120V.d.c120V.d.c120V.d.c
MPPT Number2222
Max. DC Input Current13A/13A13A/13A13A/13A13A/13A
BatteryLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
Compatible Battery TypeLithium-ion/Lead-AcidLithium-ion/Lead-AcidLithium-ion/Lead-AcidLithium-ion/Lead-Acid
Nominal Battery Voltage48V.d.c48V.d.c48V.d.c48V.d.c
Battery Voltage Range40 – 60V.d.c40 – 60V.d.c40 – 60V.d.c40 – 60V.d.c
Max. Charge/Discharge Current66A/66A66A/66A80A/80A80A/80A
Max. Charge/Discharge Power3600W/3600W3600W/3600W4000W/4000W4000W/4000W
Charging Curve3 stages3 stages3 stages3 stages
Max. Charge Voltage59V59V59V59V
Capacity of Battery2-20kWh2-20kWh2-20kWh2-20kWh
GridLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
Nominal AC Output Power3000W3600W/4000W4600W/5000W6000W
Max. AC Output Power3000VA3600VA/4000VA4600VA/5000VA6000VA
Max. AC Output Current15A16A/20A25A26A
Nominal AC Voltage230V.a.c230V.a.c230V.a.c230V.a.c
AC Voltage Range180 – 270V.a.c180 – 270V.a.c180 – 270V.a.c180 – 270V.a.c
Nominal AC Frequency50Hz / 60Hz50Hz / 60Hz50Hz / 60Hz50Hz / 60Hz
AC Frequency Range45 – 55Hz / 55 – 65Hz45 – 55Hz / 55 – 65Hz45 – 55Hz / 55 – 65Hz45 – 55Hz / 55 – 65Hz
Power FactorAdjustable 0.8 overexcited to 0.8 underexcitedAdjustable 0.8 overexcited to 0.8 underexcitedAdjustable 0.8 overexcited to 0.8 underexcitedAdjustable 0.8 overexcited to 0.8 underexcited
THDI<3%<3%<3%<3%
UPSLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
UPS Max. Output Power without Solar3000W3600W/4000W4000W4000W
UPS Max. Output Power with Solar3000W3600W/4000W5000W6000W
UPS Nominal Output Voltage230V.a.c230V.a.c230V.a.c230V.a.c
UPS Nominal Output Frequency50Hz / 60Hz50Hz / 60Hz50Hz / 60Hz50Hz / 60Hz
UPS Nominal Output Current13A15.6A/17.4A17.4A17.4A
Peak Power Without Solar4500W, 30s4500W, 30s4500W, 30s4500W, 30s
THDV<5%<5%<5%<5%
Switching TimeTypical 0.01sTypical 0.01sTypical 0.01s<0.01s
EfficiencyLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
Europe Efficiency97.50%97.50%97.50%97.50%
Max. Efficiency97.90%97.90%97.90%97.90%
Battery Charge/Discharge Efficiency94.50%94.50%94.50%94.50%
ProtectionLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
Reverse Polarity ProtectionYesYesYesYes
Over Current/Voltage ProtectionYesYesYesYes
Anti-islanding ProtectionYesYesYesYes
AC Short-ciruit ProtectionYesYesYesYes
Leakage Current ProtectionYesYesYesYes
Ground Fault MonitoringYesYesYesYes
Grid MonitoringYesYesYesYes
Ingress Protect DegreeIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4XIP65 / NEMA4X
DC SwitchYesYesYesYes
GeneralLXP3KLXP3.6K/4kLXP4.6K/5KLXP6K
Dimensions (W/H/D)455 / 476 (565) / 181455 / 476 (565) / 181455 / 476 (565) / 181455 / 476 (565) / 181
Weight20 kg20 kg20 kg20 kg
TopologyTranformerless (solar), HF (Battery)Tranformerless (solar), HF (Battery)Tranformerless (solar), HF (Battery)Tranformerless (solar), HF (Battery)
Cooling ConceptNatural ConvectionNatural ConvectionNatural ConvectionNatural Convection
Relatively Humidity0-100%0-100%0-100%0-100%
Operating Temperature Range-85-85-85-85
Altitude<2000m<2000m<2000m<2000m
Noise Emission<25dB<25dB<25dB<25dB
Standby Consumption<5W<5W<5W<5W
Display & Communication InterfacesLCD, RS485, Wi-Fi, EthernetLCD, RS485, Wi-Fi, EthernetLCD, RS485, Wi-Fi, EthernetLCD, RS485, Wi-Fi, Ethernet
